1zKonter

Codice articolo: 1zKonter

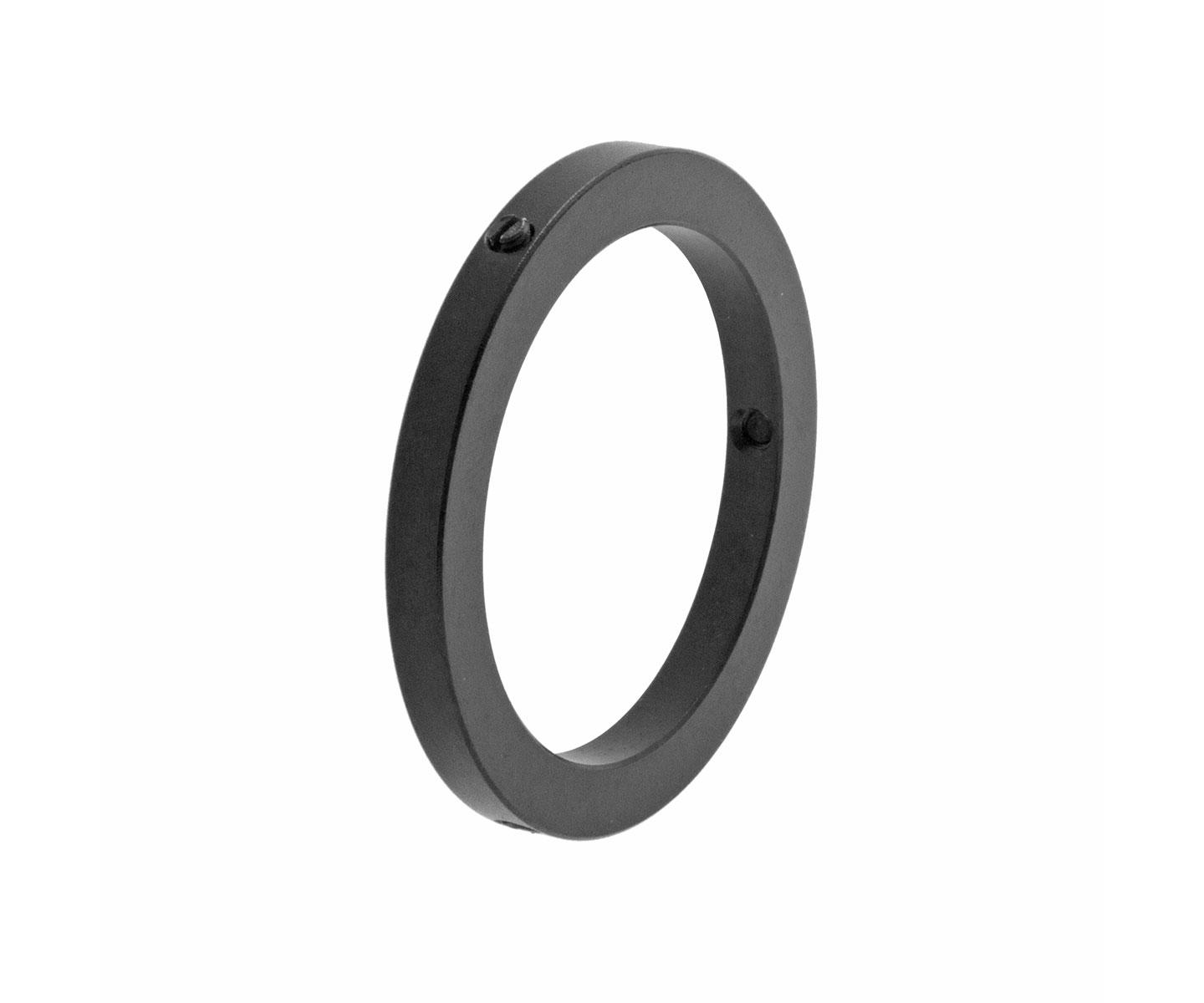

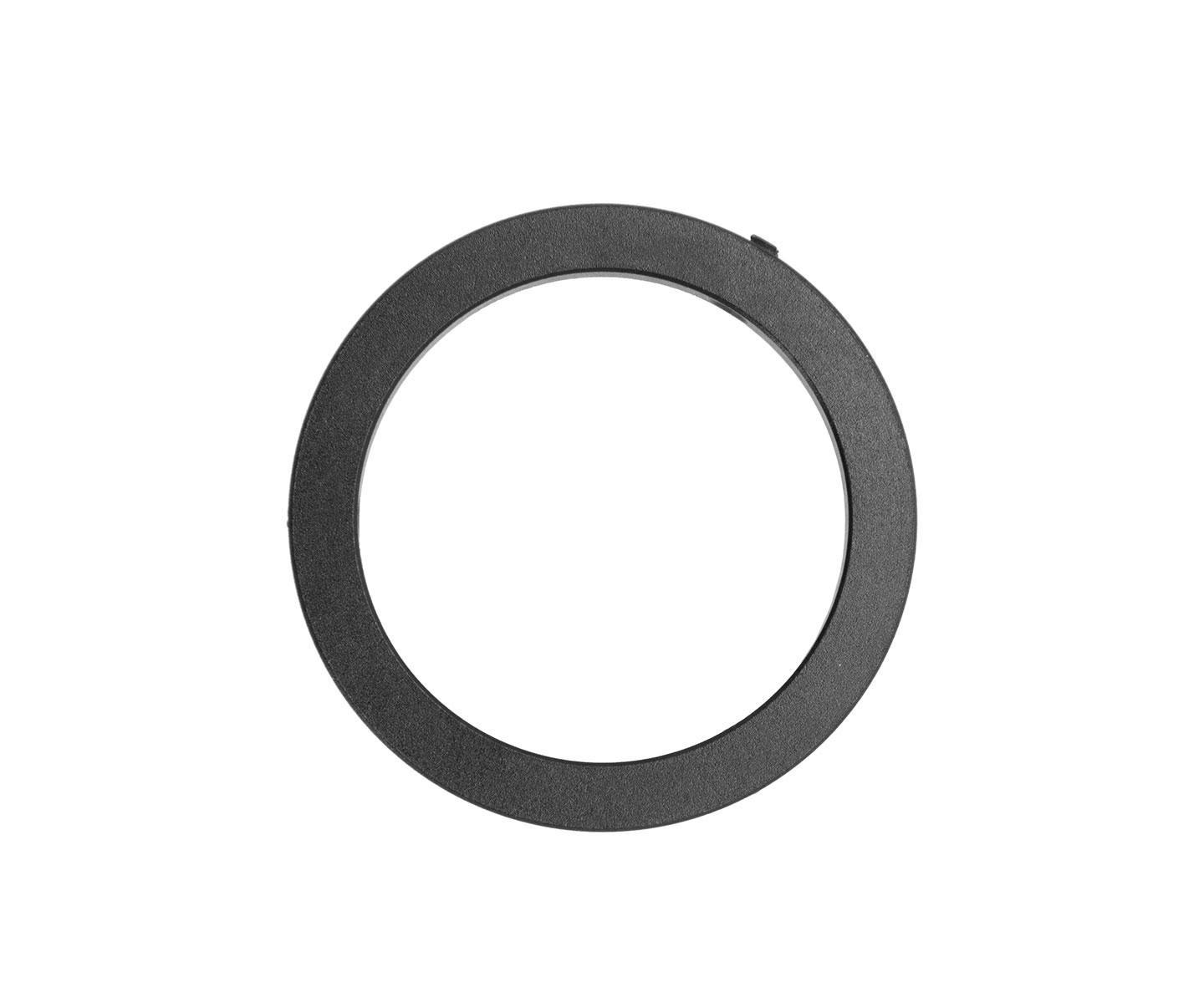

Precise locking ring for 1.25" eyepieces and adapter for pushing onto the barrel

♦ Precise locking by 3 screws

♦ For fixing or calibrating of the plug-in depth of 1.25" eyepieces or adapters - for example if you want identical focus positions.

♦ Prevents from tilting through the safety notch when using compression rings.

♦ Can also be used for making a calibration eyepiece for astrophotography.

TS-Optics 1.25" Locking Ring for barrels
The locking ring fits to 1.25" barrels and is locked at the wanted position by three headless screws. Thus you can decide for yourself how much an eyepiece or adapter protrudes into the focuser or the receptacle of the star diagonal

A useful addition to this ring is a 1.25" extension which is screwed into the filter thread (see recommended accessories).

The locking ring is also used extensively for preventing tilting problems with eyepieces with safety notch if used with compression rings. The locking ring reduces the insertion depth of the barrel.

You can also make the eyepieces parfocal to each other by using several rings, so then refocusing is not necessary anymore. Or you can set an eyepiece perfectly parfocal to a camera. Now you can locate the object with the eyepiece, focus, and then start with photography immediately by simply removing the eyepiece and attaching the camera.
