Tri-Pier Pier Adapter for AZ

Codice articolo: TSPier-Div

Adapter for the TS column stand for do-it-yourselfers

The adapter is for do-it-yourselfers who want to make their own mount adaptation.
Matching stainless steel counter screws and a pin for azimuth adjustment of the mount are included.
Diameter on the bottom side is 93.8 mm - suitable for the TS-Optics Tri-Pier tripod - also ideal for do-it-yourself construction with a tube as a pier.

TS pier adapter and tripod adapter for self-builders

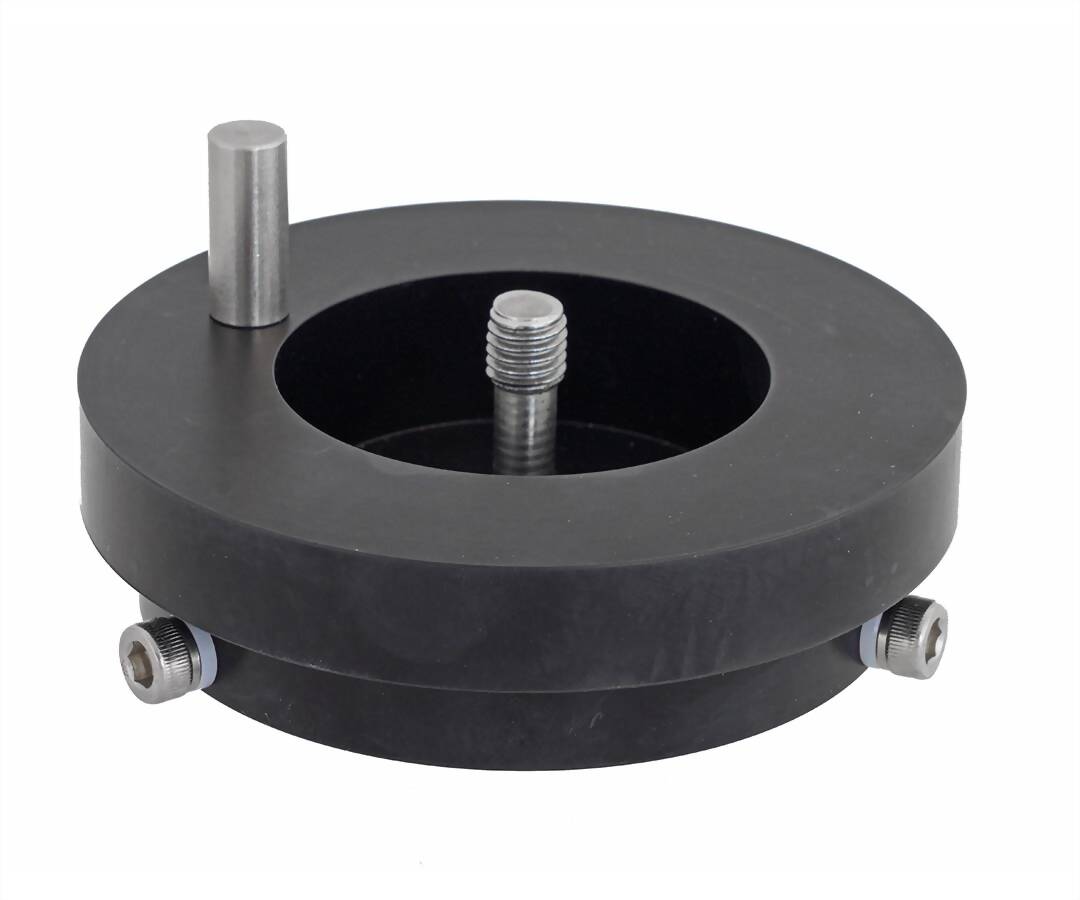

The adapter allows the connection of mounts or tilt heads to the TS-Optics column tripod. The data of the adapter on the mount side:
Diameter of the recess for the mount pin: 54 mm
Depth of the recess for the mounting pin: 20 mm
Center bolt: M10
Distance from the center to the pin for the AZ fine adjustment: 38 and 46 mm
Pin for AZ adjustment: diameter 10 mm, height 35 mm

How to attach your mount to the pillar stand or pillar with this adapter:
Screw the adapter to the bottom side of the mount. Use the matching washer with the slot, so that the mount is securely attached but can still be adjusted.
Place the mount with the connected adapter on the pier or on the pier base of the TS-Optics Tri-Pier pier stand. The adapter fits in all columns with 94 mm inner diameter.
