Tri-Pier Pier Adapter with 3/8" Photo Thread

Codice articolo: TSPier-38

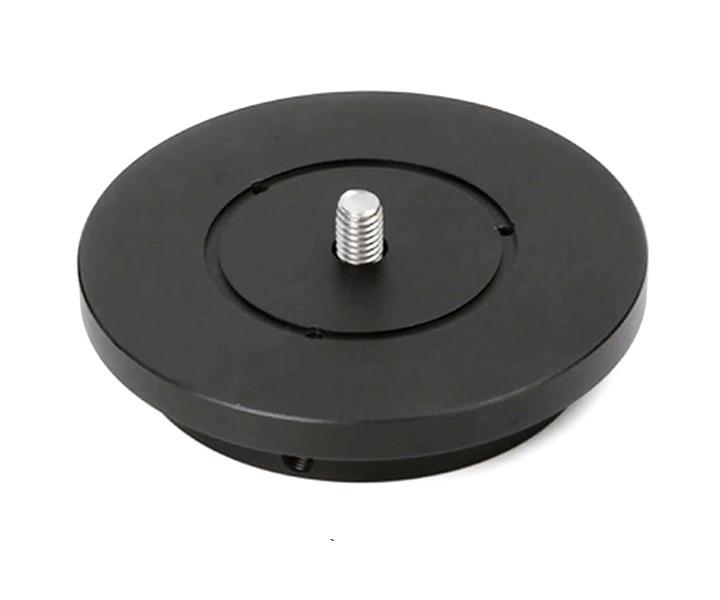

The adapter has a 3/8" photo thread (male thread ) on the top side.
Diameter at the bottom is 93.8 mm - fits the TS-Optics Tri-Pier pier tripod - also ideal for DIY with a pipe as pier.

The adapter allows you to connect your mount or ball head to the TS-Optics Tri-Pier column tripod. The attachment is made via the 3/8" photo thread.

How to attach your mount to the pier tripod or pier with this adapter:
Screw the adapter to the bottom of the mount. Use the matching washer with the slot, this will seat the mount snugly, but it can still be adjusted.

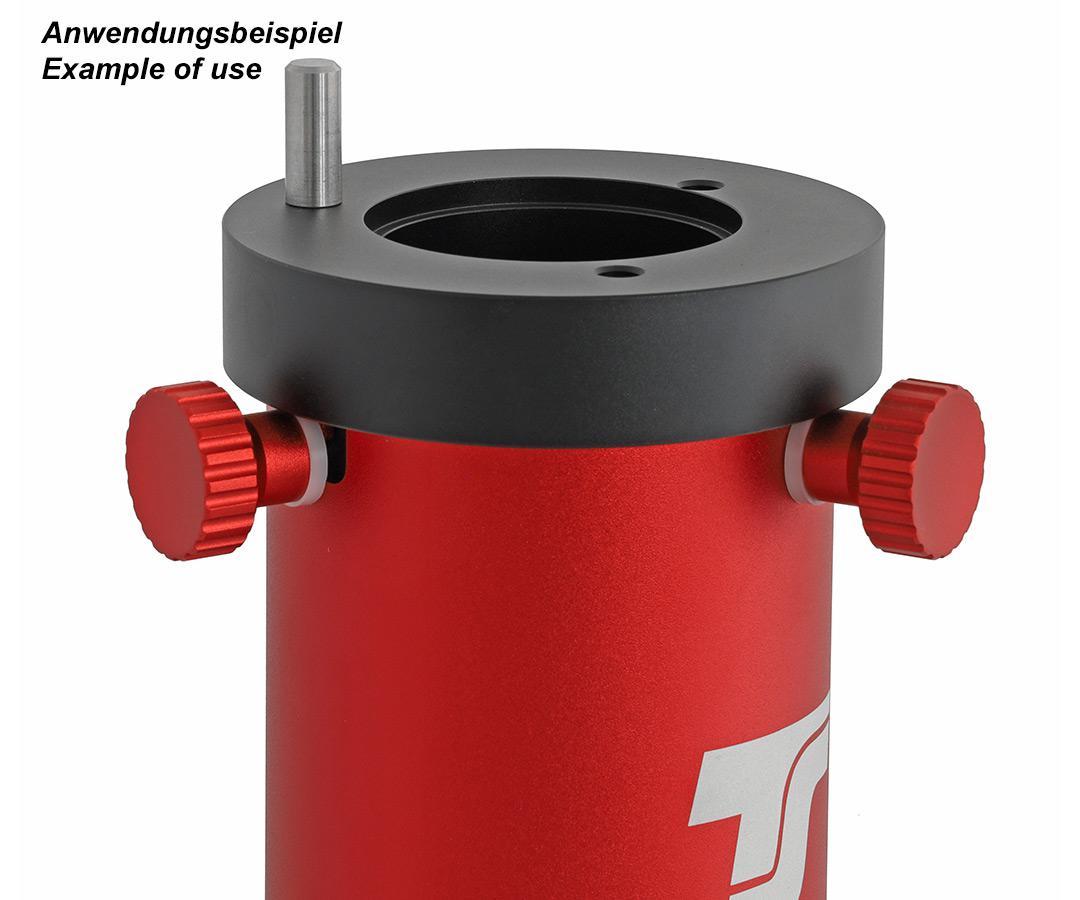

Then place the mount with the attached adapter on the pier or on the pier extension of the TS-Optics Tri-Pier pier tripod. The adapter fits all piers with 94 mm inner diameter.
For fixation, the pier adapter provides three radially arranged female M6 threads (distance 120° to each other) at the ring base on the bottom side. Axial fixing is possible via three M4 female threads in the ring groove, but there are hardly any ready-made tripods or similar bases available. Therefore, practically only a pipe comes into question as a pier.

Specifiche tecniche:
