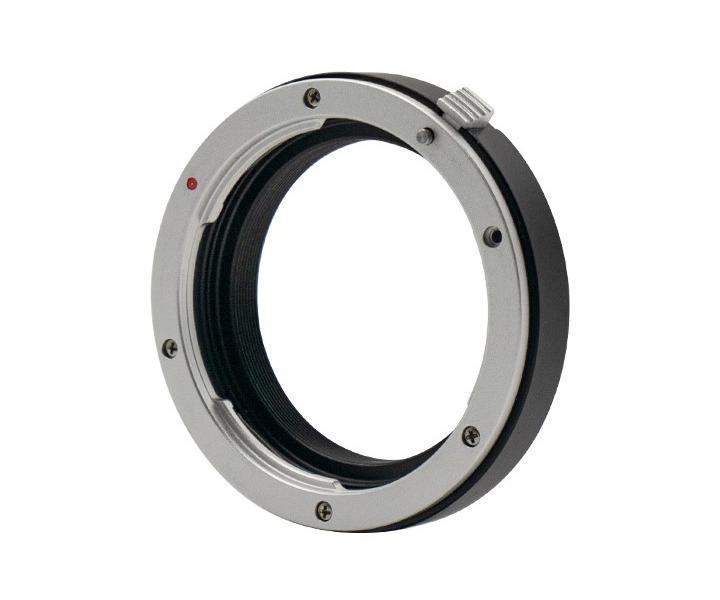

ZWO Canon EOS Lens Adapter for 2" EFW Filter Wheels

Codice articolo: ZWO-EFW-EOS-II

ZWO Canon EOS Lens Adapter for 2" EFW Filter Wheels

Use Canon EOS lenses with a motorized ZWO 2" filter wheel and a large ASI camera from ZWO for wide-field photography
♦ Lens side connection: EOS mount female for accepting Canon EOS lenses

♦ Camera side connection: M54 thread, matching the 2" EFW filter wheels from ZWO

♦ The adapter is suitable for cooled ZWO cameras ASI6200 und ASI2600 in conjunction with a ZWO 2" filter wheel. After removing the sensor tilt adapter you get the correct working distance for the Canon EOS lenses.

ZWO Canon EOS Lens Adapter for 2" EFW Filter Wheels

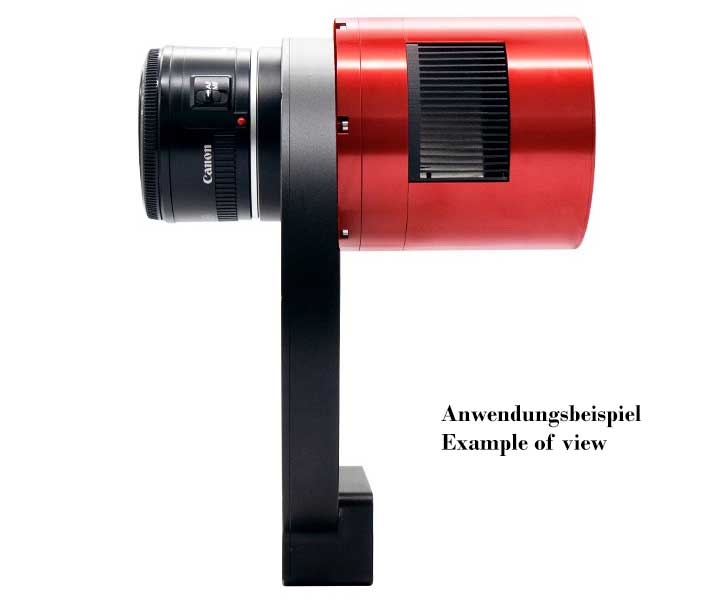

Connect camera lenses with EOS mount to a 2" EFW filter wheel with cooled ASI camera and create ultimate wide field images. The length of the adapter is optimally matched to the working distance of the EOS lenses. You will not have any problems with focusing. The sensor tilt adapter need to be removed before you mount the camera with the 2" EFW.

The connection adapter is suitable for:

♦ Canon EOS lenses
♦ motorized 2" ZWO filter wheels with
♦ cooled astro camera ASI6200 or ASI2600 from ZWO

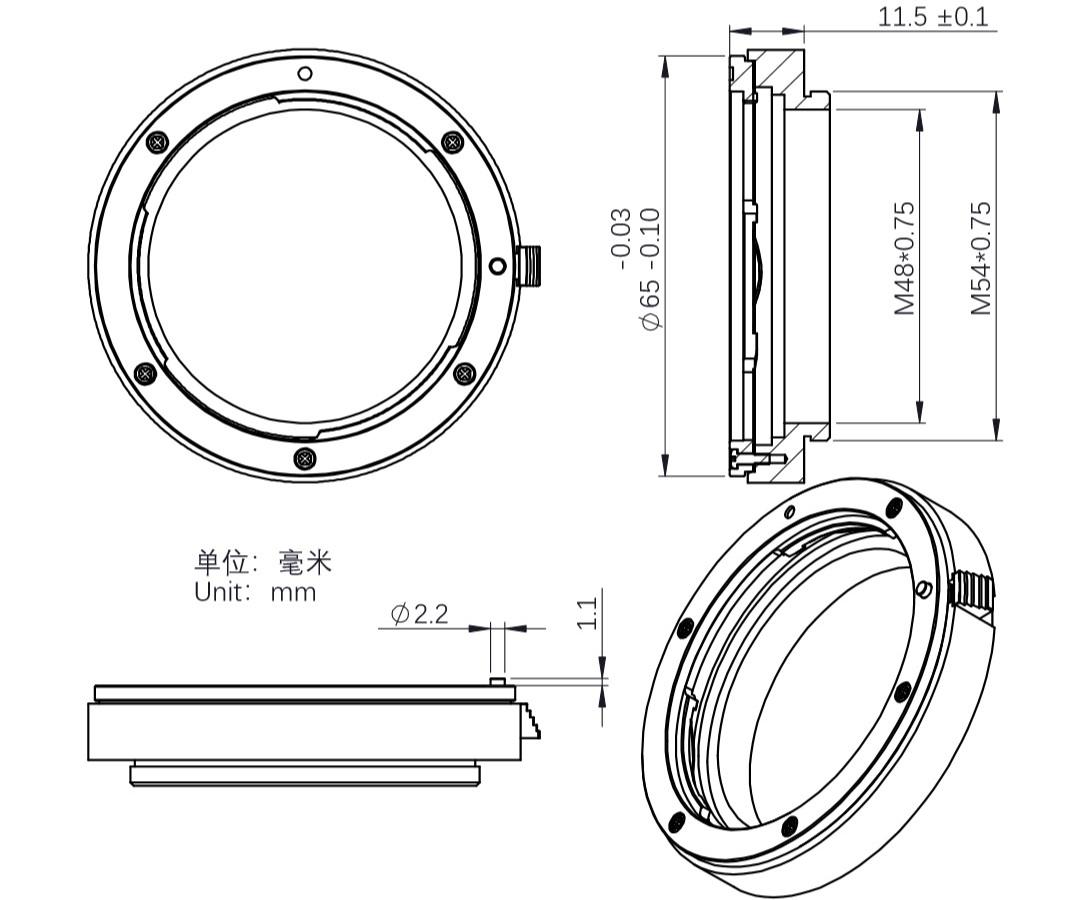

Lens side connection: EOS mount female for accepting Canon EOS lenses
Camera side connection: M54x0.75 thread matching to the 2" EFW filter wheels from ZWO
Length: 11.5 mm
