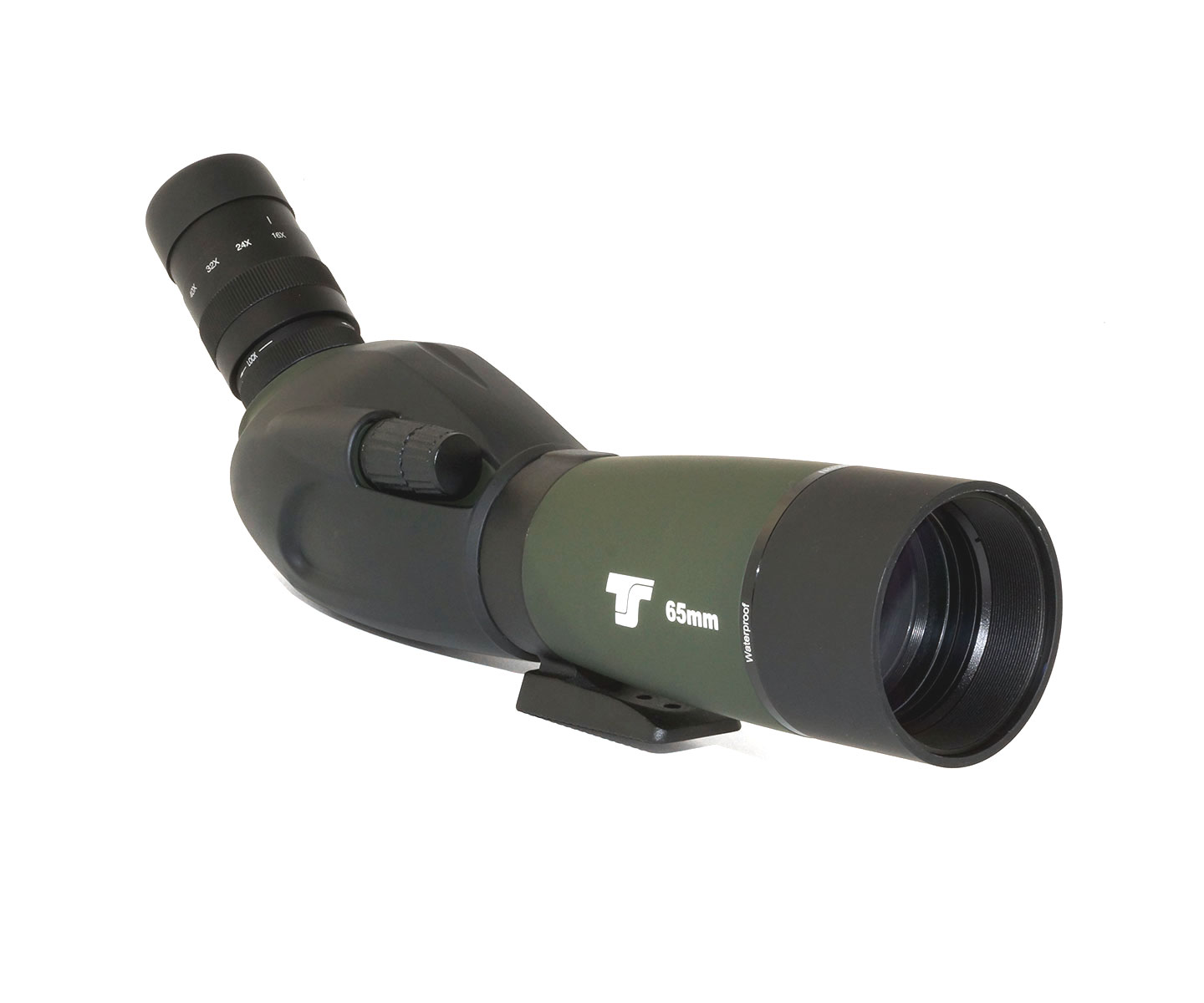

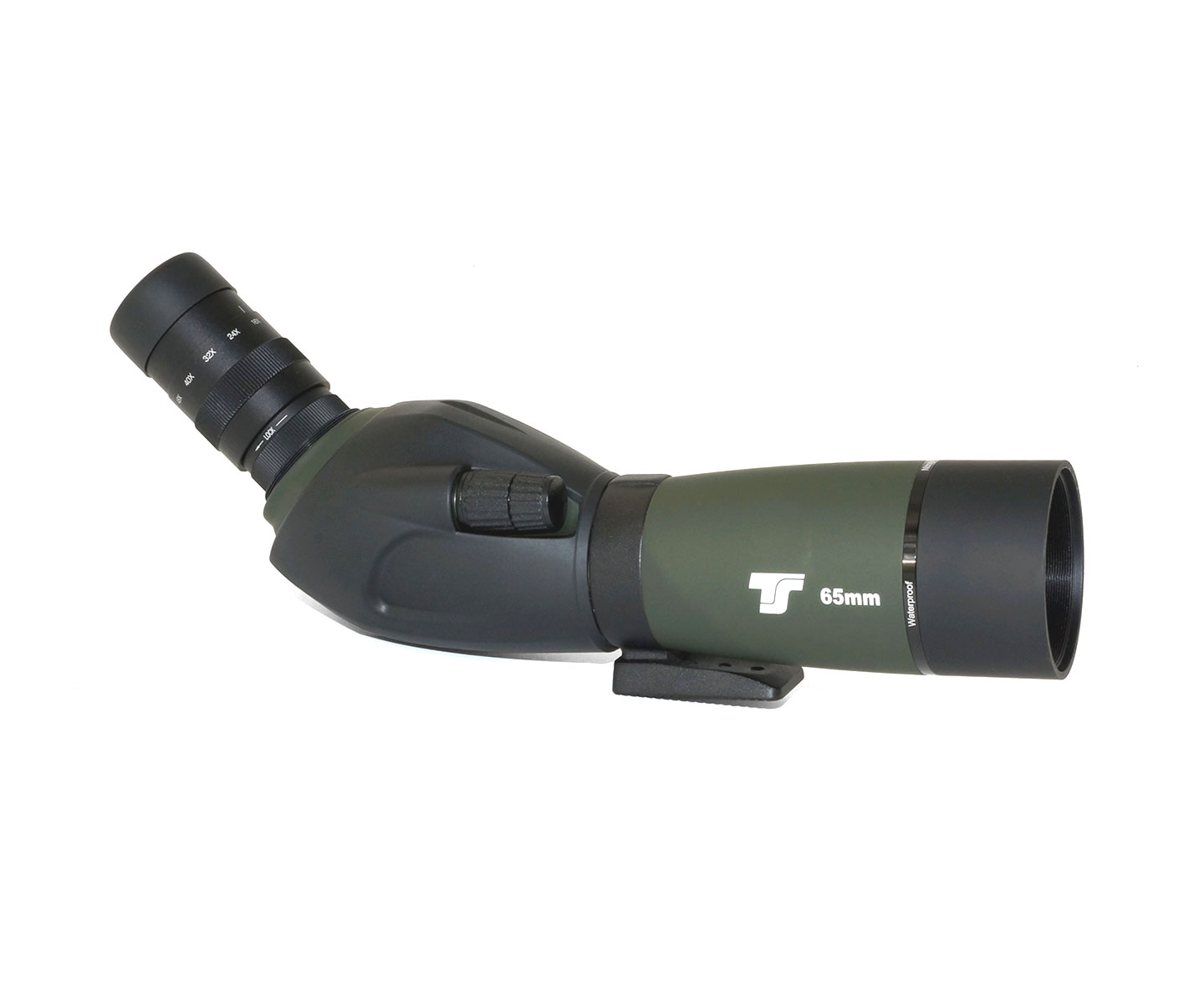

Spotting Scope BW65Z 16-48x65 mm

Codice articolo: BW65Z

• TS Optics Premium Spotting Scope 65 mm 16-48x Zoom - nitrogen-purged, with high-quality 1.25" zoom eyepiece and upscale equipment - a wonderful spotting scope for travelling!
• ♦ Aperture 65 mm
• ♦ Magnification 16x - 48x continous
• ♦ High-quality wide-angle zoom eyepiece with 1.25" barrel included in standard scope of delivery
• ♦ The spotting scope can be equipped with 1.25" eyepieces. With optional eyepieces, the magnification can be increased up to 96x.
• ♦ Extendable dewcap against stray light and dew
• ♦ Micro focusing with additional fine transmission, helpful for quick and extremely smooth focusing especially when photographing
• ♦ waterproof, nitrogen-filled, ideal for almost every weather and with high-quality quiver for additional protection and transport - a real outdoor spotting scope
• ♦ Helpful carrying case - transportation and protection in the rain
• ♦ 360° click-stop rotation - choose the insight angle so that it is most comfortable for you
• ♦ Twist eyecup - adjust the correct eye relief for your eye - ideal for spectacle wearers

The BW65Z Spotting Scope offers:

♦ It is ideal for bird and nature observing, for a view into the distance ar an occasional view into the sky. The BW series of the TS-Optics´ spotting scopes offers all features known from significantly more expensive spotting scopes.
♦ Through the 360° click-stop rotation, people like marksmen have the possibility to get the best insight angle for them.
♦ The TS BW spotting scopes are waterproof and against fogging, nitrogen-filled.
♦ Wide-angle zoom eyepiece with continous magnification from 16 to 48x
♦ Due to the 1.25" (31.7 mm) receptacle, many telescope eyepieces can be used. For example, you get 120x magnification with the optional TS-Optics Planetary 4 mm. Suitable eyepieces are linked in the accessories section.
♦ Adjustable twist eyecups for achieving the optimal eye relief for spectacle wearers.
♦ The base has three 1/4" photo threads, so you can better belance the spotting scope out or attach it to many astronomical mounts with dovetail bar.

Photography with this spotting scope
The TS-Optics BW65Z is ready for digiscoping. With the optional photo adapter for the BW65Z, you can take beautiful photos through the spotting scope and use it as telephoto lens. The adapter can be found in the accessories section.

The adaption could not be easier: Screw the photo adaptor CA-Final on the zoom and then attach your digital camera with the optional T2 ring or objective adapter (if you don´t have a camera with interschangeable lens) and you can take great photographs through the spotting scope.

The magnification factor of the zoom is kept here - the spotting scope turns into a telephoto lens with a variable focal length between approx. 322 mm bis 965 mm.

Special features in detail:

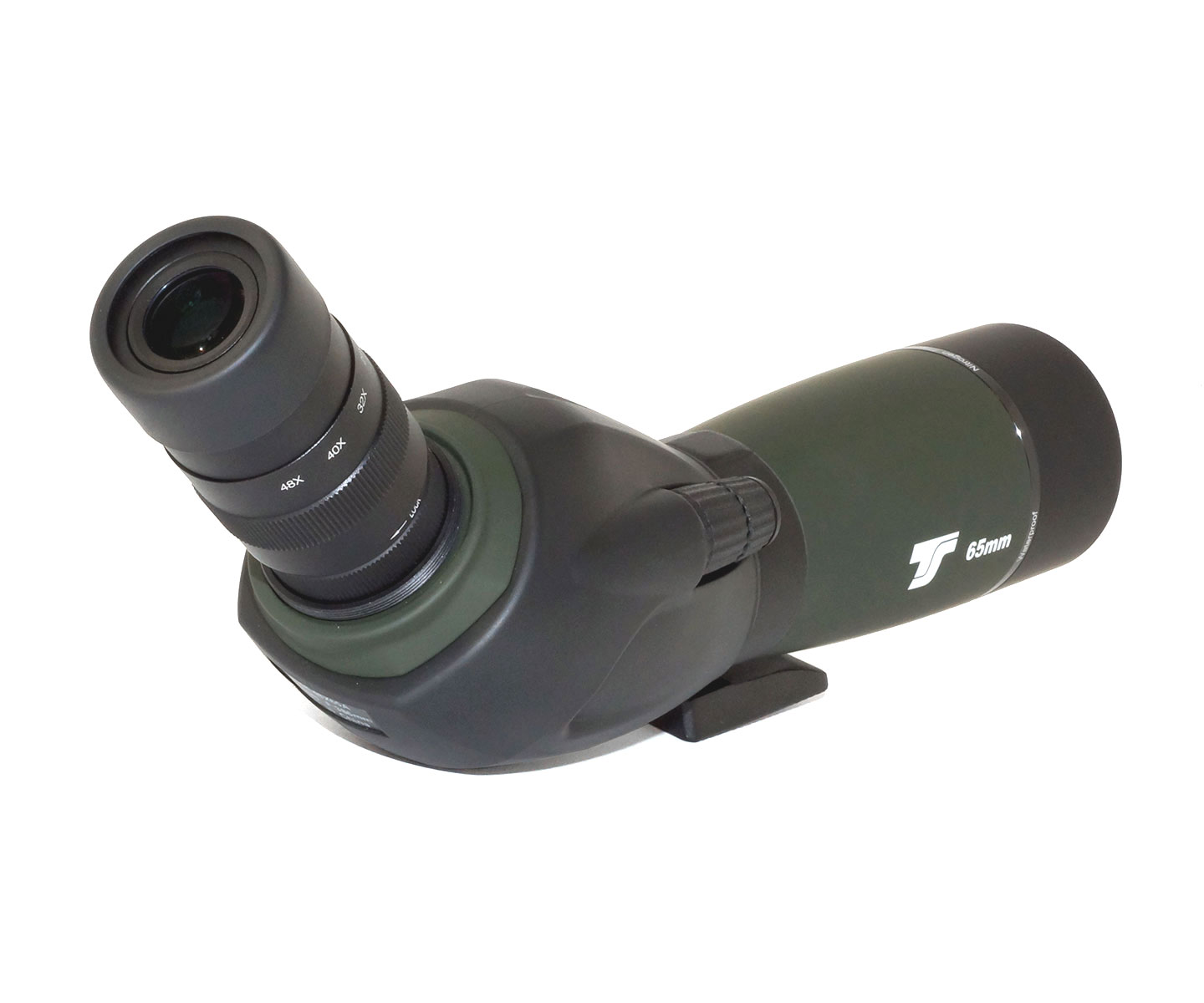

1.25" eyepiece connection with locking system

The 1.25" eyepiece connection is established at professional telescopes for quite some time. The advantages are obvious. You can quickly change eyepieces and have the complete range of professional eyepieces at hand.

For example, you can achieve 96x magnification with the planetary eyepiece HR4.

How do I calculate the magnification?

That is very easy. The spotting scope has a focal length of 386 mm. Just divide the spotting scope´s focal length by the focal length of the eyepiece and obtain the magnification.

Example: 386mm / 4mm (focal length of HR 4 eyepiece) = 96.5x

Coarse focusing and fine focusing for perfect sharpness

Use the coarse focusing for quick viewing. When birding, for example, you have to change the focal plane quickly for not missing the motif.

At the same rotary knob, you have the micro transmission for observing something in detail. Especially in photography through the spotting scope, exact focusing is very important for perfect results.

The carrying bag:

The provided bag is more than just a container. Of course, the padded bag will perform this task very well.

But can also mount the spotting scope onto a tripod with the bag. The coverings of lens, eyepiece and focusing are opened, the rest of the spotting scope stays protected. Thus the operation in very humid environmental conditions is possible, for example when hunting. The tripod is not included.

Versatile tripod connection and 360° click-stop rotation:

The tripod connection of the BW65Z spotting scope is elaborate, too. It offers a 360° click-stop rotation if the insight should be at the side instead of at top.

The connector offers three 1/4" photo threads, so you can better balance the spotting scope or even attach it to many astronomical mounts by using an optional dovetail bar.

Techinacal Data

Aperture: 65 mm
Objective: 2-element achromatic objective
Magnification: 16-48x continous
Coating: high-quality multi-coating for maximum color fidelity
Focal length: 386 mm
Weight: approx. 1.9 kg
Total length: With zoom eyepiece approx. 400 mm
Fogging: Prevented by nitrogen filling
