Anelli da 230mm diametro

Codice articolo: TSCR230

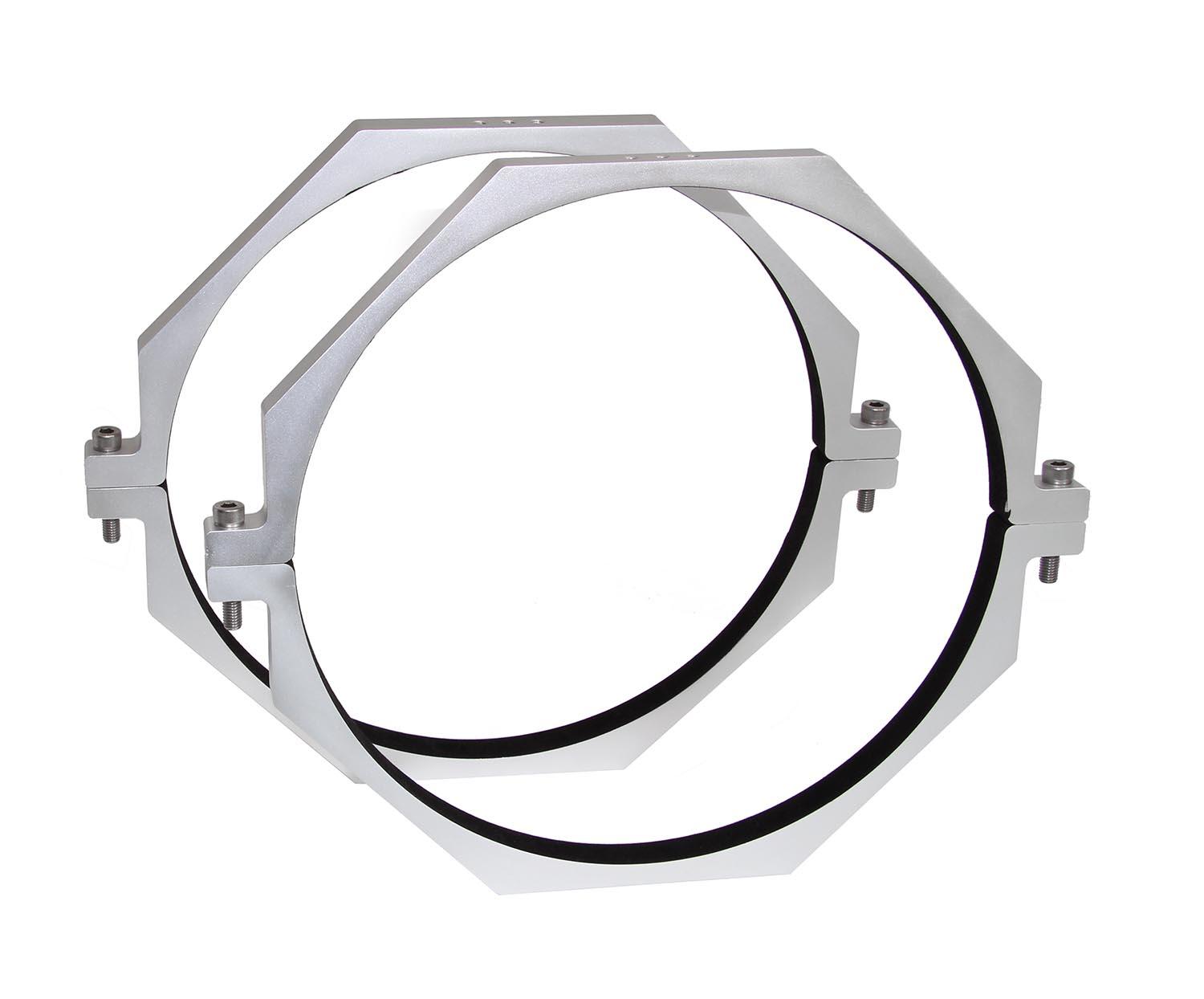

Stable and lightweight metal tube rings for optimal connection from telescope to mount

Suitable for tubes with 230 mm outer diameter
Best possible stability by using a particular hard aluminium alloy
Minimal weight-loading of the mount through lightweight construction and optimized distance from telescope to ring base
Elegant and classy design at slender dimensions - no space is wasted

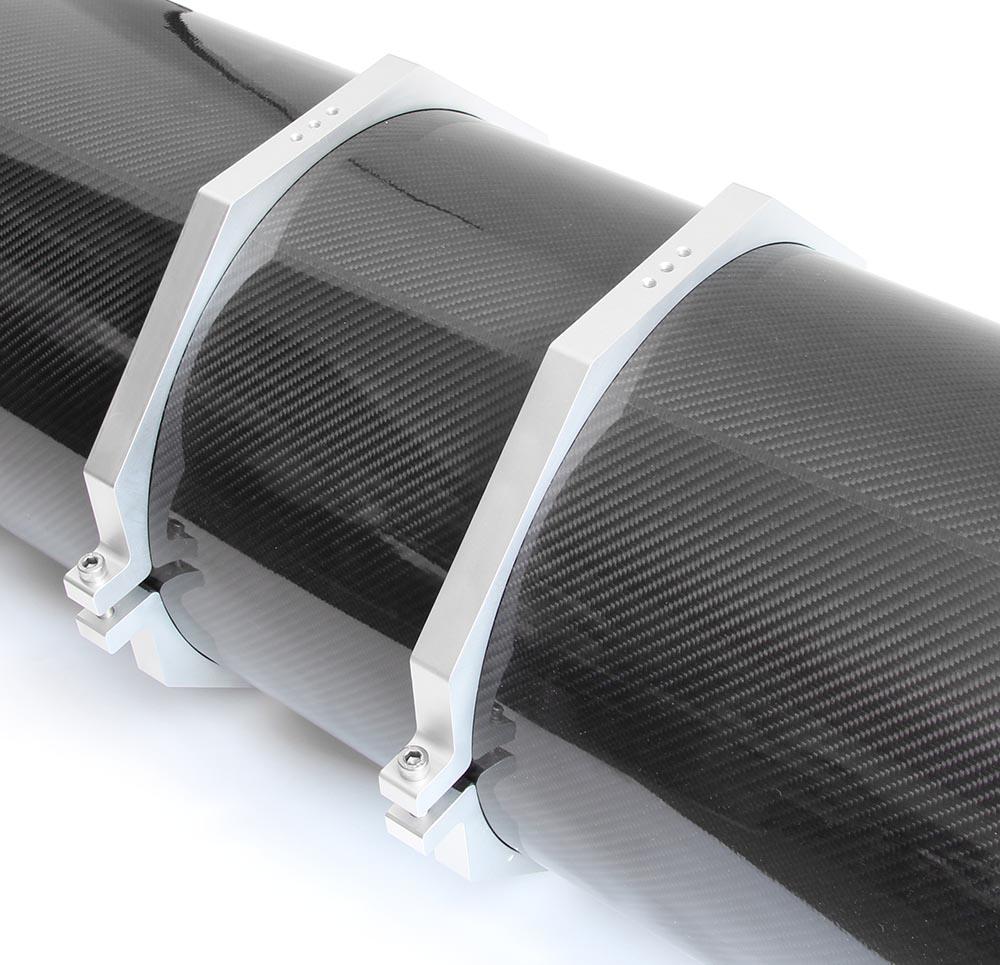

Easy and quick attachment of the rings to the tube
Plane support surfaces on both sides with 3 female M6 threads in each surface
Thin felt liner on the inside - no scratches on the tube

A beautiful telescope should be attached to the mount with perfect tube rings, too. Here, a beautiful look is as much in demand as gut technical properties. The CNC tube rings from TS Optics fullfill these requirements.

The tube has only 10 mm distance to the bottom side of the rings, thus the mount is not additionally loaded by unnecessarily long levers.
The tubes have plane support surfaces on both sides with three female M6 threads on each side. With this, you can attach dovetail bars and accessories soundly and safe.
With only 20 mm thickness, the rings are lightweight yet very stable
A thin layer of felt was put on the inside of the tube rings for avoiding scratches. However, the tube is clamped very well in the rings and does not change position. That is important if a guiding scope is attached to the rings.

Inner diameter: 230 mm
Material: aluminium
Support surfaces: plane surfaces on top and bottom with 3x M6 thread (female) on every support surface
Distance of the threads: 1x M6 thread in the middle - 2x M6 threads at a distance of 12.5 mm from the middle
Thickness of the rings: 20 mm
Weight: 612 g per ring (approx. 1.35 lbs)
