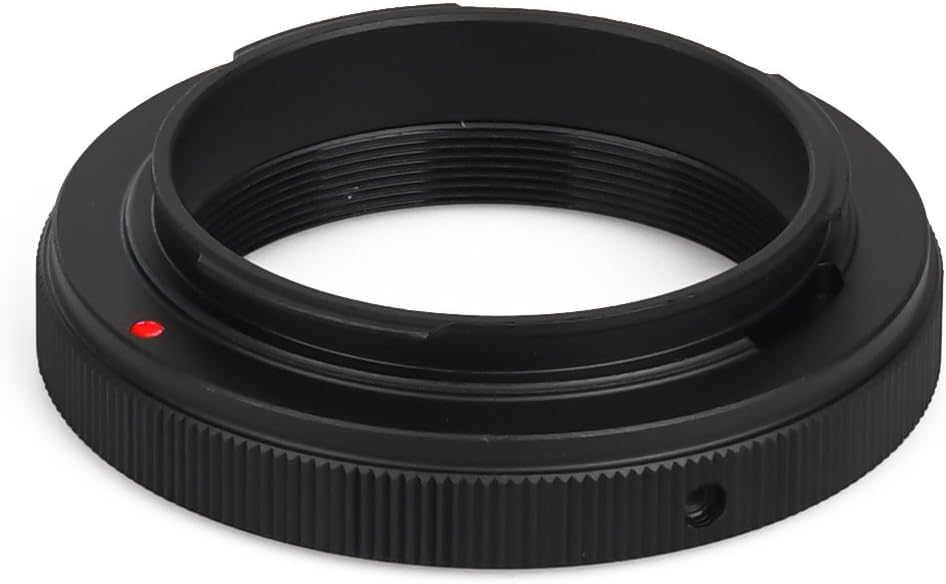

TS-Optics T-Ring from M48 to Pentax K mount

Codice articolo: M48PentaxK

The short adapter from M48 to Pentax K bayonet allows a compact connection to the M48 filter thread without the T2 bottleneck.

♦ Connection lens/telescope side: M48x0.75 female thread (2" filter thread)

♦ Connection camera side: Pentax K / Sigma SA mount

♦ Fits also to the (analog) astro SLR camera Vixen VX-1

♦ Optical path: 9.5 mm

♦ The camera sensor is exactly 55 mm away from the M48 female thread - ideal for most correctors

TS-Optics Adapter from M48 filter thread to Pentax K mount

This adapter from the M48 thread (2" filter thread) to the Pentx K bayonet allows a short adapter from the M48 filter thread without the smaller T2 thread. This improves the illumination and makes the adaptation to correctors with M48 thread possible.

The adapter fits all cameras with the Pentax K and limited to the Sigma SA bayonet.

The T-Ring adapter is suitable for, among others:

♦ Skywatcher field flatteners and reducers for ED refractors (SKFlat80, SKFlat100, SKFlat120)
♦ Skywatcher Coma Corrector (Komakorrf4)
♦ Baader MPCC coma corrector
♦ TS, Tele Vue, Riccardi ... Flatteners and correctors

Direct 2" connection with full aperture without T2 bottleneck

With the 2" extension ring TSVF230 you can adapt the T-ring directly to a 2" receptacle, without the T2 bottleneck. Of course, the TSVF230 again offers the 2" filter screw-in thread on the telescope side.

This allows you to attach your DSLR camera directly to 2" sleeves and have full illumination even for full frame cameras. You will find the 2" extension sleeve below under the "accessory recommendations".

Connection to correctors with the T2 thread:

The TST2-M48S adapter reduces the M48 female thread to T2 without optical path. This allows you to use the adapter also for correctors with T2 (M42x0.75) connection.
